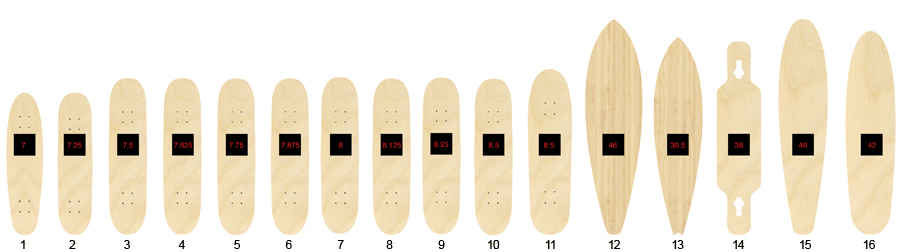

CUSTOM SHAPES:

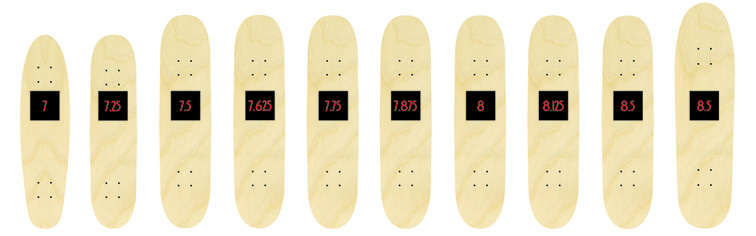

7 x 29 7.25 x 31.125 7.5 x 31 7.625 x 31.125 7.75 x 31.125 7.875 x 31 8 x 31.75 8.125 x 31.125 8.5 x 32.25 8.5 x 32.25
WOOD:
• Hard rock US maple veneers
• California cold-press process, 3-day curing time
• 19.5 Degree kick on nose & tail
• 3 Concave options: flat, medium and deep
• Waterproof polymer base glue
• Two coats of lacquer
• Hi-Quality graphics
• Fast turn-around time
• Made in U.S.A. Hi Quality Urethane
• Street & Skatepark Formula Available
• 98A - 101A Hardness
• 50% Re-Bounce
• Anti-Yellowing Technology
• 50 Set Minimum

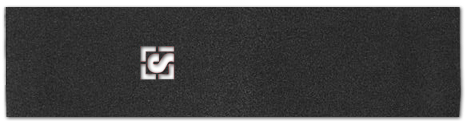

GRIPTAPE:
• Custom die-cut griptape available
• Laser Cut technology
• Hi-Grade quality
• perforated or regular
• 20 sheet boxes
• Fast turn-around time
Shape 1: blocky nose, narrow tail
Shape Width Length Nose Tail Wheelbase
1 7.5" 31" 6.625" 6.375" 14"
1 7.625" 31.125" 6.75" 6.5" 14"
1 7.75" 31.125" 6.75" 6.5" 14"
1 7.875" 31.125" 6.75" 6.5" 14"
Shape 2: blocky nose, blocky tail
Shape Width Length Nose Tail Wheelbase
2 7.25" 31.125" 6.625" 6.5" 14"
2 7.875" 31" 6.75" 6.5" 14"
2 8" 31.5" 6.75" 6.5" 14"
2 8.125" 31.125" 6.75" 6.25" 14.25"
2 8.25" 31.5" 7" 6.5" 14.25"
Shape 3: round nose, narrow tail
Shape Width Length Nose Tail Wheelbase
3 7.5" 30.875" 6.5" 6.25" 14"
3 7.625" 31.125" 6.75" 6.5" 14"
3 7.75" 31.125" 6.75" 6.375" 14"
3 8" 31.75" 7" 6.5" 14"
Urethane:
Color Size Width Hardness
White 50mm 30mm 101A
White 51mm 30mm 101A
White 52mm 31mm 101A
White 53mm 32mm 101A
White 54mm 33mm 101A
White 55mm 32mm 101A
White 56mm 33mm 101A
Black 51mm 30mm 100A
Black 52mm 31mm 100A
Black 53mm 32mm 100A
